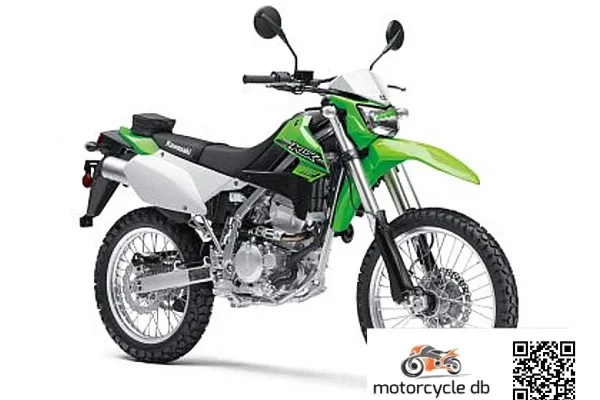

2016Kawasaki KLX250

42 fields on record

The 2016 Kawasaki KLX250 is a lightweight dual-sport motorcycle designed for beginner and intermediate riders seeking adventure both on and off-road. Known for its manageable 250cc engine, forgiving ergonomics, and capable suspension travel, it excels as an accessible entry point into dirt biking and trail exploration. Its fuel injection and reliable DOHC powerplant provide dependable performance for learning riders.

Capacity: 249.0 ccm
Engine: Single, four-stroke
Gearbox: 6-speed
Dry weight: 117.0 kg
Seat height: 890 mm
Power: 21.5 HP (15.7 kW) @ 7500 RPM

⇄ Compare with another bike ＋ Add to garage All model years

What’s new for the 2016 Kawasaki KLX250

vs the 2015

Spec	2015	2016
Rear suspension	New Uni-Trak	Uni-Trak. Compression damping: 20-way. Rebound damping: 20-way. Spring preload: Fully adjustable.
Front brakes	Single disc. Dual -piston hydraulic caliper	Single disc
Rear brakes	Single disc. Single-piston	Single disc

Other years 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021

How it rides

Editorial estimate from the spec sheet - not lab tested

Off-road & trail90%

Cornering55%

City riding45%

Daily riding40%

Touring25%

Two-up15%

Track20%

Best for: Built primarily as a dual-sport/enduro machine for trail riding and light off-road exploration, with occasional street use.
Built for: A nimble, low-stress trail bike that rewards playful, momentum-based riding rather than outright speed.
Not ideal for: Not a good fit for riders wanting sustained highway touring, high top speed, or a plush two-up passenger experience.

Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.

Will it fit you?

Worked out in your browser - nothing is sent to us

Your height

Inseam (optional)

Units

At 890mm, a rider of 175cm with a 79cm (estimated) inseam will not reach the ground comfortably on the 2016 Kawasaki KLX250, with a cramped knee angle of around 80 degrees and an upright riding position.

Assumes about 30mm of suspension sag once seated. This is an approximation from category-typical geometry, not a measurement of this bike or of you - sit on one before you buy.

More bikes at 821-900 mm — Long Legs →

Find bikes that fit your height →

Full specifications

Engine

Capacity: 249.0 ccm
Power: 21.5 HP (15.7 kW) @ 7500 RPM
Torque: 20.5 Nm (2.1 kgf-m) @ 7000 RPM
Engine type: Single, four-stroke
Power/weight ratio: 0.1838 HP/kg (dry)
Bore x stroke: 72.0 x 61.2 mm
Compression: 11.0:1
Cooling system: Liquid
Fuel system: Injection
Starting: Electric
Ignition: CDI
Valves per cylinder: 4
Lubrication system: Forced lubrication, wet sump

Transmission

Gearbox: 6-speed
Transmission type: Manual
Final drive: Chain
Clutch: Wet multi-disc, manual

Performance

Top speed: 118.0 km/h (73.3 mph)

Dimensions & weight

Wheelbase: 1430 mm
Overall length: 2200 mm
Overall width: 820 mm
Overall height: 1205 mm
Seat height: 890 mm
Dry weight: 117.0 kg
Wet weight: 138.0 kg
Fuel capacity: 7.70 litres
Ground clearance: 285 mm

Chassis & suspension

Frame: Perimeter, high-tensile steel
Front suspension: 43 mm upside-down telescopic fork
Rear suspension: Uni-Trak. Compression damping: 20-way. Rebound damping: 20-way. Spring preload: Fully adjustable.
Front wheel travel: 255 mm
Rear wheel travel: 230 mm
Rake (fork angle): 26.6°
Trail: 106 mm

Brakes & wheels

Front brakes: Single disc
Front brakes diameter: 250 mm
Rear brakes: Single disc
Rear brakes diameter: 240 mm
Front tyre: 3.00-21
Rear tyre: 4.60-18

Other

Color options: Lime Green

Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.

What changed, year to year

Differences highlighted

Specification	2001	2006	2011	2016	2021
Capacity	249 cc	249 cc	249 cc	249 cc	249 cc
Dry weight	117 kg	117 kg	117 kg	117 kg	—
Seat height	885 mm	885 mm	890 mm	890 mm	890 mm
Fuel capacity	7.5 L	7.5 L	7.7 L	7.7 L	7.6 L
