Enduro Bikes

2027KTM 500 EXC-F Six Days

Rate this bike
Click to vote

29 fields on record

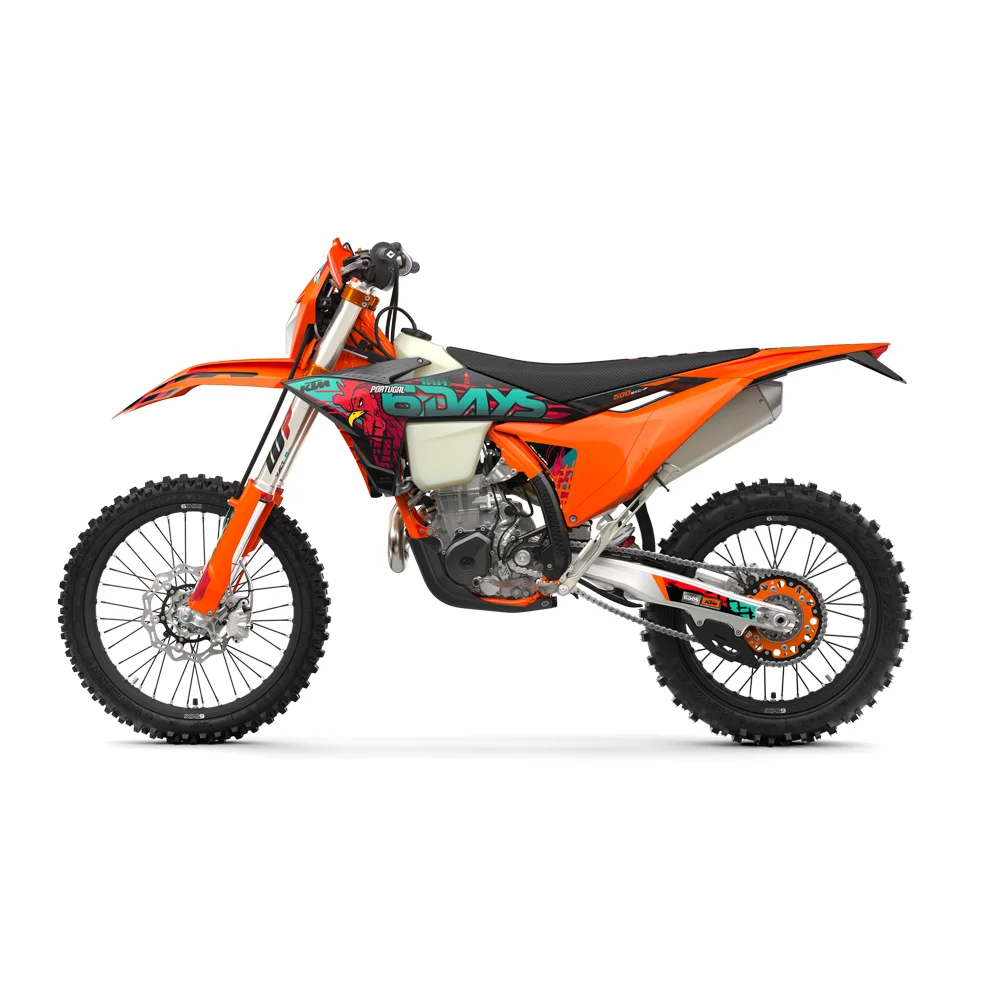

The 2027 KTM 500 EXC-F 6DAYS is the special-edition version of KTM's biggest four-stroke enduro, wearing the colours of the FIM International Six Days Enduro. Its 510.9cc liquid-cooled single with Keihin engine management drives a six-speed gearbox, in a 25CrMo4 steel double-cradle frame with WP XACT 48mm forks (300mm travel) and a WP XPLOR PDS shock (310mm). It weighs 114.8kg without fuel, with a 963mm seat, 8.5-litre tank and 260/220mm brake discs. KTM does not publish power or torque for this model.

Capacity
510.9 ccm
Engine
Single, four-stroke
Gearbox
6-speed
Dry weight
114.8 kg
Seat height
963 mm
Power
Not on record
Know it? Add it →
⇄ Compare with another bike + Add to garage All model years

What’s new for the 2027 KTM 500 EXC-F Six Days

vs the 2026
Spec20262027
Power 52.0 HP (38.2 kW) not listed
Dry weight 108.2 kg (238.5 pounds) 114.8 kg (253.1 pounds)
Front suspension WP XACT Closed Cartridge Ø 48 mm WP XACT-USD 48mm fork, compression/rebound adjustable
Rear suspension WP XPLOR shock absorber with PDS WP XPLOR shock with PDS, preload adjustable
Front brakes Single disc 260mm disc
Rear brakes Single disc 220mm disc
Compression 12.8:1 not listed
Other years 2018 2019 2020 2021 2022 2023 2024 2025 2026 2027

How it rides

Editorial estimate from the spec sheet - not lab tested
Speed 65Agility 88Comfort 28Off-road 96Touring 12Road manners 15
Off-road & trail96%
Cornering55%
City riding8%
Daily riding10%
Touring12%
Two-up5%
Track30%
Best for
Enduro racing and extreme technical terrain
Built for
Big-bore four-stroke enduro special edition with ISDE styling
Not ideal for
Beginners, commuting, passengers or touring

Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.

Will it fit you?

Worked out in your browser - nothing is sent to us
At 963mm, a rider of 68.9" with a 31" (estimated) inseam will not reach the ground comfortably on the 2027 KTM 500 EXC-F Six Days, with a moderate knee angle of around 105 degrees and an upright riding position.

Assumes about 30mm of suspension sag once seated. This is an approximation from category-typical geometry, not a measurement of this bike or of you - sit on one before you buy.

More bikes at over 900 mm — Sky High →

Find bikes that fit your height →

Reliability & safety

Bike Reliability score, safety recalls and owner complaints

Bike Reliability

How the score works →
58
out of 100Average

The KTM 500 EXC-F Six Days passed its annual roadworthiness test first time 87.4% of the time, 2.5 points above expected for bikes of the same age and mileage. That beats 58% of models.

This covers every year of the model.

87.4%Passed first time
4.8%Failed outright
7.8%Fixed during test
2,000Typical miles
501Tests
Pass rate against other bikes
This bike
87.4%
Same age
84.9%
All bikes
82.2%

Share of first tests passed with nothing failed or fixed during the test. Same age is what bikes of the same age and mileage pass on average; all bikes is the average over every bike tested, 2005–2025. The score compares this bike with the same-age figure.

Score by year first registered
20172019
What it fails on
Most common faults
  1. Reflector missing51%
  2. Registration plate does not conform to the specified requirements24%
  3. Wheel bearing has excessive play9%
  4. Shock absorber has a serious fluid leak7%
  5. Position lamp not working7%

Share of 71 failed tests, 2018–2026, that failed on each fault.

From British annual roadworthiness tests, 2005 to November 2026. Contains public sector information licensed under the Open Government Licence v3.0 (DVSA MOT test data, Great Britain). How Bike Reliability works.

Check a bike by registration

Buying a used bike? Enter its registration to see its MOT history, recorded mileage and how it compares with the model.

Full specifications

Engine
Capacity
510.9 ccm
Engine type
Single, four-stroke
Cooling system
Liquid
Fuel system
Injection
Starting
Electric
Transmission
Gearbox
6-speed
Transmission type
Manual
Final drive
Chain
Dimensions & weight
Wheelbase
1489 mm
Seat height
963 mm
Dry weight
114.8 kg
Fuel capacity
8.50 litres
Ground clearance
347 mm
Chassis & suspension
Frame
Central double-cradle 25CrMo4 steel, aluminium-reinforced polyamide subframe
Front suspension
WP XACT-USD 48mm fork, compression/rebound adjustable
Rear suspension
WP XPLOR shock with PDS, preload adjustable
Front wheel travel
300 mm
Rear wheel travel
310 mm
Rake (fork angle)
26.1°
Brakes & wheels
Front brakes
260mm disc
Front brakes diameter
260 mm
Rear brakes
220mm disc
Rear brakes diameter
220 mm
Front tyre
90/90-21
Front Wheel
21.0 in
Rear tyre
140/80-18
Rear Wheel
18.0 in
Other
Comments
6DAYS edition in FIM International Six Days Enduro colours. Keihin EMS, aluminium silencer, 520 X-Ring chain. Weight quoted without fuel. Steering head angle 63.9 deg.

Specs last verified against published sources: .

Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.

What changed, year to year

Differences highlighted
Specification 20182020202320252027
Capacity 510 cc 511 cc 511 cc 511 cc 511 cc
Dry weight 107 kg 106 kg 106 kg 108 kg 115 kg
Seat height 960 mm 960 mm 960 mm 963 mm 963 mm
Fuel capacity 8.5 L 9 L 9.2 L 8.5 L 8.5 L
Bike Reliability ⓘ Too few tests Too few tests Too new Too new Too new

Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.

Rider Reviews

—
☆☆☆☆☆
Be the first to rate

Own one? Add it to My Garage and write an owner review with an Owner badge.

Common questions

Is the KTM 500 EXC-F Six Days reliable?

Across all years, the KTM 500 EXC-F Six Days has a Bike Reliability score of 58 out of 100 (average), better than 58% of models. It passed its annual roadworthiness test first time 87.4% of the time against 82.2% for all bikes, 2.5 points above what is expected for bikes of the same age and mileage. Based on 501 tests in Great Britain.

What is the engine size of the KTM 500 EXC-F Six Days?

The 2027 KTM 500 EXC-F Six Days has a Capacity of 510.9 ccm (31.18 cubic inches).

How many gears does the KTM 500 EXC-F Six Days have?

The 2027 KTM 500 EXC-F Six Days has a Gearbox of 6-speed.

How much does the KTM 500 EXC-F Six Days weigh?

The 2027 KTM 500 EXC-F Six Days has a Dry weight of 114.8 kg (253.1 pounds).
