Supermotos

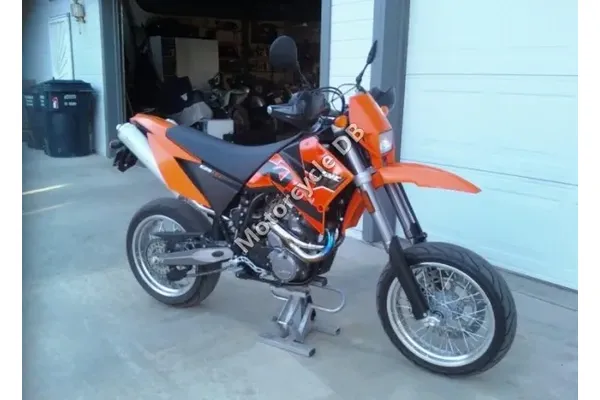

2006KTM 660 SMC
37 fields on record
The 2006 KTM 660 SMC is a lightweight supermotard designed for riders seeking versatile street and dirt capability. Its potent single-cylinder engine delivers responsive performance, while the compact, agile chassis excels in urban environments and tight trail work. Known for its exceptional handling and affordability, it appeals to adventure-minded riders who value nimbleness over outright power.
- Capacity
- 654.0 ccm
- Engine
- Single, four-stroke
- Gearbox
- 5-speed
- Dry weight
- 138.0 kg
- Seat height
- 910 mm
- Power
- 28.2 HP (20.7 kW) @ 6250 RPM
What’s new for the 2006 KTM 660 SMC
vs the 2005| Spec | 2005 | 2006 |
|---|---|---|
| Power | 32.2 HP (23.7 kW) | 28.2 HP (20.7 kW) @ 6250 RPM |
| Torque | 43.0 Nm (4.4 kgf-m or 31.7 ft.lbs) | 42.5 Nm (4.3 kgf-m or 31.3 ft.lbs) |
| Dry weight | 131.0 kg (288.8 pounds) | 138.0 kg (304.2 pounds) |
| Fuel capacity | 9.00 litres (2.38 US gallons) | 9.20 litres (2.43 US gallons) |
| Front suspension | WP-USD 48 MA | WP-USD 48 mm (1.89 inches) |
| Rear suspension | WP - Monoshock | WP-Monoshock with Pro-Lever linkage |
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built for supermoto-style thrills, tight cornering, and flickable street or track riding rather than long-distance travel.
- Built for
- A raw, single-cylinder supermoto that rewards an energetic, playful riding style with immediate throttle response and razor-sharp steering.
- Not ideal for
- Not a good match for riders wanting plush comfort, pillion-friendly ergonomics, or a relaxed high-mileage touring machine.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 654.0 ccm
- Power
- 28.2 HP (20.7 kW) @ 6250 RPM
- Torque
- 42.5 Nm (4.3 kgf-m)
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.2043 HP/kg (dry)
- Bore x stroke
- 102.0 x 80.0 mm
- Compression
- 11.7:1
- Cooling system
- Liquid
- Fuel system
- Carburettor
- Starting
- Electric & kick
- Ignition
- Kokusan DC-CDI
- Valves per cylinder
- 4
- Lubrication system
- Pressure lubrication with 2 oil pumps
Transmission
- Gearbox
- 5-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Multi-disc wet clutch, hydraulically operated
Dimensions & weight
- Wheelbase
- 1510 mm
- Overall width
- 660 mm
- Seat height
- 910 mm
- Dry weight
- 138.0 kg
- Fuel capacity
- 9.20 litres
- Ground clearance
- 290 mm
Chassis & suspension
- Frame
- Double ground, chrome-moly-steel frame, powder-coated
- Front suspension
- WP-USD 48 mm (1.89 inches)
- Rear suspension
- WP-Monoshock with Pro-Lever linkage
- Front wheel travel
- 300 mm
- Rear wheel travel
- 335 mm
- Rake (fork angle)
- 27.0°
- Trail
- 99 mm
Brakes & wheels
- Front brakes
- Single disc
- Front brakes diameter
- 320 mm
- Rear brakes
- Single disc
- Rear brakes diameter
- 220 mm
- Front tyre
- 120/70-17
- Rear tyre
- 120/70-17
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2003 | 2004 | 2005 | 2006 | 2007 |
|---|---|---|---|---|---|
| Capacity | 654 cc | 654 cc | 654 cc | 654 cc | 654 cc |
| Dry weight | 131 kg | 131 kg | 131 kg | 138 kg | 138 kg |
| Seat height | 910 mm | 910 mm | 910 mm | 910 mm | 910 mm |
| Fuel capacity | 9 L | 9 L | 9 L | 9.2 L | 9.2 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the KTM 660 SMC?
The 2006 KTM 660 SMC has a Capacity of 654.0 ccm (39.91 cubic inches).
What engine power does the KTM 660 SMC have?
The 2006 KTM 660 SMC has a Power of 28.2 HP (20.7 kW) @ 6250 RPM.
How many gears does the KTM 660 SMC have?
The 2006 KTM 660 SMC has a Gearbox of 5-speed.
What is the torque of the KTM 660 SMC?
The 2006 KTM 660 SMC has a Torque of 42.5 Nm (4.3 kgf-m or 31.3 ft.lbs).
How much does the KTM 660 SMC weigh?
The 2006 KTM 660 SMC has a Dry weight of 138.0 kg (304.2 pounds).
