2003KTM 950 Adventure S
37 fields on record
The 2003 KTM 950 Adventure S is a large-capacity V-twin enduro designed for experienced adventure riders seeking serious off-road capability combined with road-going versatility. Powered by a 942cc liquid-cooled engine producing 98 horsepower, it excels in long-distance exploration across challenging terrain. Its relatively light 198kg weight for the class and robust construction made it a benchmark adventure bike of its generation.
- Capacity
- 942.0 ccm
- Engine
- V-Twin
- Gearbox
- 6-speed
- Dry weight
- 198.0 kg
- Seat height
- 920 mm
- Power
- 98.0 HP (72.1 kW)
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built as a long-range adventure tourer with genuine off-road capability, excelling on mixed terrain, gravel roads, and multi-day exploring rather than pure speed or track work.
- Built for
- A rugged, V-twin-powered adventure machine that rewards riders who want strong midrange torque, long suspension travel, and genuine dirt credibility in a package that can still cover highway miles.
- Not ideal for
- Not a good fit for shorter or novice riders, strict city commuters wanting light weight and low seats, or anyone chasing sport-bike cornering speed and track performance.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 942.0 ccm
- Power
- 98.0 HP (72.1 kW)
- Torque
- 95.0 Nm (9.7 kgf-m)
- Engine type
- V-Twin
- Power/weight ratio
- 0.4949 HP/kg (dry)
- Bore x stroke
- 100.0 x 60.0 mm
- Compression
- 11.5:1
- Cooling system
- Liquid
- Fuel system
- Carburettor
- Starting
- Electric
- Ignition
- Denso battery ignition
- Lubrication system
- Pressure lubrication
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Wet multi-disc clutch, operated hydraulically
Dimensions & weight
- Wheelbase
- 1570 mm
- Overall width
- 950 mm
- Overall height
- 950 mm
- Seat height
- 920 mm
- Dry weight
- 198.0 kg
- Fuel capacity
- 25.00 litres
- Ground clearance
- 316 mm
Chassis & suspension
- Frame
- Tubular chromoly space frame, power-coated
- Front suspension
- WP-USD 48 Multi Adjuster
- Rear suspension
- WP - PDS with hydraulic spring preload
- Front wheel travel
- 265 mm
- Rear wheel travel
- 260 mm
- Rake (fork angle)
- 26.6°
- Trail
- 119 mm
Brakes & wheels
- Front brakes
- Double disc
- Front brakes diameter
- 300 mm
- Rear brakes
- Single disc
- Rear brakes diameter
- 240 mm
- Front tyre
- 90/90-21
- Rear tyre
- 150/70-18
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2003 | 2004 | 2005 | 2006 |
|---|---|---|---|---|
| Capacity | 942 cc | 942 cc | 942 cc | 942 cc |
| Dry weight | 198 kg | 198 kg | 198 kg | 198 kg |
| Seat height | 920 mm | 920 mm | 860 mm | 860 mm |
| Fuel capacity | 25 L | 25 L | 22 L | 22 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the KTM 950 Adventure S?
The 2003 KTM 950 Adventure S has a Capacity of 942.0 ccm (57.48 cubic inches).
What engine power does the KTM 950 Adventure S have?
The 2003 KTM 950 Adventure S has a Power of 98.0 HP (72.1 kW).
How many gears does the KTM 950 Adventure S have?
The 2003 KTM 950 Adventure S has a Gearbox of 6-speed.
What is the torque of the KTM 950 Adventure S?
The 2003 KTM 950 Adventure S has a Torque of 95.0 Nm (9.7 kgf-m or 70.1 ft.lbs).
How much does the KTM 950 Adventure S weigh?
The 2003 KTM 950 Adventure S has a Dry weight of 198.0 kg (436.5 pounds).
Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Similar bikes
Same category, weighted similarity

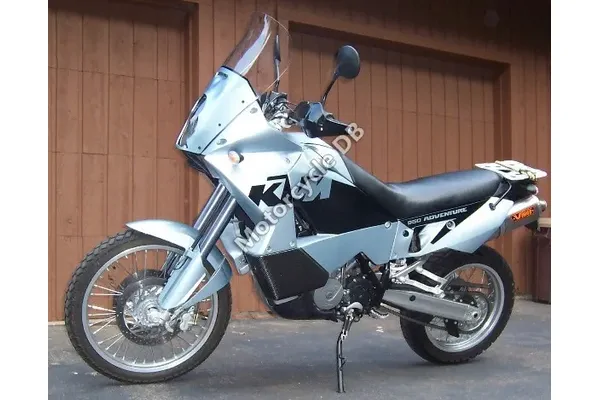

2004 KTM 950 Adventure Silver/orange/black
