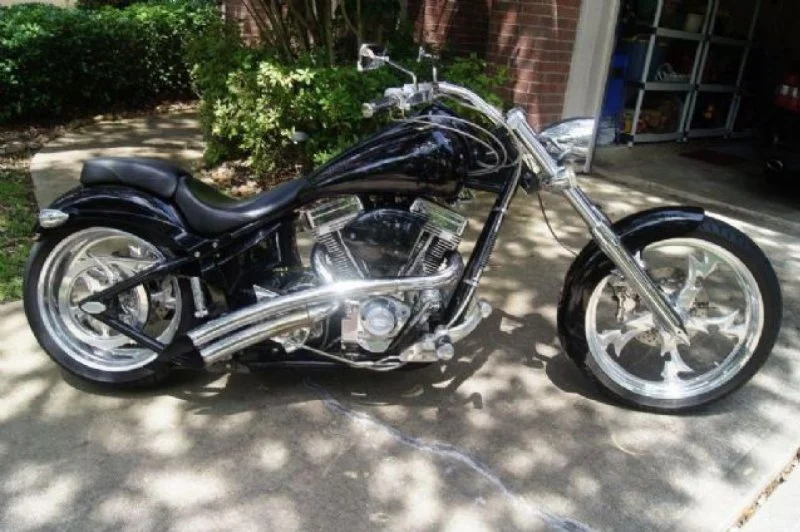

2009Titan Sidewinder Custom Pro Street Softail
31 fields on record
The 2009 Titan Sidewinder Custom Pro Street Softail is a heavyweight custom cruiser built for riders seeking low-slung styling and substantial power. Its 1750cc V-twin engine delivers 112 horsepower and commanding torque for street performance. Known for aggressive custom aesthetics and comfortable cruising capability, it appeals to enthusiasts valuing classic cruiser character with modern reliability.
- Capacity
- 1750.0 ccm
- Engine
- V-Twin
- Gearbox
- 6-speed
- Dry weight
- 294.8 kg
- Seat height
- 610 mm
- Power
- 112.0 HP (82.4 kW)
What’s new for the 2009 Titan Sidewinder Custom Pro Street Softail
vs the 2008| Spec | 2008 | 2009 |
|---|---|---|
| Torque | 121.0 Nm (12.3 kgf-m or 89.2 ft.lbs) | 164.1 Nm (16.7 kgf-m or 121.0 ft.lbs) |
| Front suspension | 54mm inverted forks | Titan 54mm inverted forks |
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built primarily as a bold, high-torque boulevard and show-style cruiser rather than a machine for cornering or long-distance touring efficiency.
- Built for
- A muscular, torque-heavy V-twin with an aggressive stretched-out custom stance that rewards riders who want to be seen as much as ridden fast.
- Not ideal for
- Not a good choice for new riders, off-road use, tight technical corners, or anyone prioritizing agility and light handling over presence and torque.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 1750.0 ccm
- Power
- 112.0 HP (82.4 kW)
- Torque
- 164.1 Nm (16.7 kgf-m)
- Engine type
- V-Twin
- Power/weight ratio
- 0.3799 HP/kg (dry)
- Compression
- 9.8:1
- Cooling system
- Air
- Fuel system
- Carburettor
- Starting
- Electric
- Ignition
- Single fire programmable ignition
- Valves per cylinder
- 2
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Primo
Dimensions & weight
- Wheelbase
- 1740 mm
- Seat height
- 610 mm
- Dry weight
- 294.8 kg
- Fuel capacity
- 17.40 litres
- Ground clearance
- 102 mm
- Reserve fuel capacity
- 4.20 litres
Chassis & suspension
- Front suspension
- Titan 54mm inverted forks
- Rear suspension
- Dual chrome adjustable shocks
- Rake (fork angle)
- 35.0°
Brakes & wheels
- Front brakes
- Single disc. 4-piston calipers, polished stanless rotor
- Front brakes diameter
- 292 mm
- Rear brakes
- Single disc. 4-piston calipers, polished stanless rotor
- Rear brakes diameter
- 292 mm
- Front tyre
- 110/90-19
- Rear tyre
- 250/40-18
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2008 | 2009 |
|---|---|---|
| Capacity | 1750 cc | 1750 cc |
| Dry weight | 295 kg | 295 kg |
| Seat height | 610 mm | 610 mm |
| Fuel capacity | 17.4 L | 17.4 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Titan Sidewinder Custom Pro Street Softail?
The 2009 Titan Sidewinder Custom Pro Street Softail has a Capacity of 1750.0 ccm (106.79 cubic inches).
What engine power does the Titan Sidewinder Custom Pro Street Softail have?
The 2009 Titan Sidewinder Custom Pro Street Softail has a Power of 112.0 HP (82.4 kW).
How many gears does the Titan Sidewinder Custom Pro Street Softail have?
The 2009 Titan Sidewinder Custom Pro Street Softail has a Gearbox of 6-speed.
What is the torque of the Titan Sidewinder Custom Pro Street Softail?
The 2009 Titan Sidewinder Custom Pro Street Softail has a Torque of 164.1 Nm (16.7 kgf-m or 121.0 ft.lbs).
How much does the Titan Sidewinder Custom Pro Street Softail weigh?
The 2009 Titan Sidewinder Custom Pro Street Softail has a Dry weight of 294.8 kg (649.9 pounds).
