Adventure Motorcycles

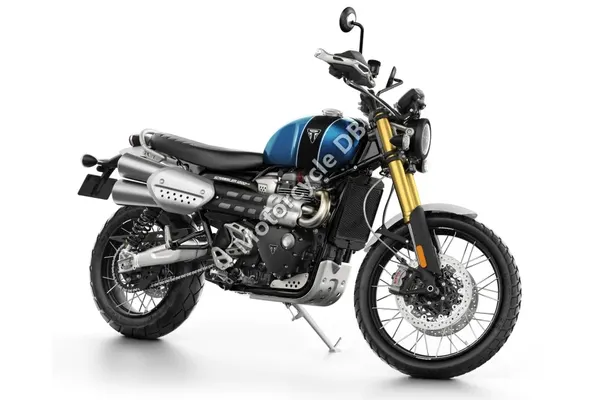

2020Triumph Scrambler 1200XE

Rate this bike

47 fields on record

The 2020 Triumph Scrambler 1200XE is a modern retro adventure bike designed for riders seeking classic styling with contemporary performance. Known for its 1200cc engine, comfortable ergonomics, and capable off-road credentials, it excels as both a weekend explorer and daily commuter. The 16-liter fuel tank and spoked wheels enhance its adventurous character while maintaining authentic scrambler heritage.

Capacity: 1200.0 ccm
Engine: Parallel Twin, four-stroke
Gearbox: 6-speed
Dry weight: 207.0 kg
Seat height: 870 mm
Power: 89.0 HP (65.0 kW) @ 7400 RPM

⇄ Compare with another bike ＋ Add to garage All model years

What’s new for the 2020 Triumph Scrambler 1200XE

vs the 2019

Spec	2019	2020
Front suspension	Showa 45mm fully adjustable upside down forksl	Showa 47mm fully adjustable upside down forksl
Wheelbase	1530 mm (60.2 inches)	1570 mm (61.8 inches)

Other years 2019 2020 2021 2022 2023 2024 2025 2026

How it rides

Editorial estimate from the spec sheet - not lab tested

Off-road & trail68%

Cornering65%

City riding55%

Daily riding68%

Touring66%

Two-up60%

Track30%

Best for: Built as a premium retro-styled scrambler that blends light off-road capability with everyday road riding and occasional long-distance touring.
Built for: Delivers a torquey, characterful parallel-twin power delivery with premium Showa and Öhlins suspension that rewards confident, relaxed riding over outright aggression.
Not ideal for: Not ideal for shorter riders, absolute beginners, or those seeking a lightweight city commuter or a track-focused sportbike.

Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.

Will it fit you?

Worked out in your browser - nothing is sent to us

Your height

Inseam (optional)

Units

At 870mm, a rider of 68.9" with a 31" (estimated) inseam will reach the ground with tip-toe one foot on the 2020 Triumph Scrambler 1200XE, with a moderate knee angle of around 95 degrees and a slightly forward riding position.

Assumes about 30mm of suspension sag once seated. This is an approximation from category-typical geometry, not a measurement of this bike or of you - sit on one before you buy.

More bikes at 821-900 mm — Long Legs →

Find bikes that fit your height →

Range and running costs

Worked out in your browser - nothing is sent to us

Units

Currency

Fuel per litre

Riding a year

Based on the maker's published fuel consumption and tank size. Real-world figures depend on how and where you ride, and the last litres of a tank are reserve. Prices shown greyed are examples - type your own.

Full specifications

Engine

Capacity: 1200.0 ccm
Power: 89.0 HP (65.0 kW) @ 7400 RPM
CO2 Emissions: 116 CO2 g/km
EPA Certificate No.: LTDXC1.20JEN-001
EPA Est. Fuel Consumption: 4.92 L/100km (47.8 US mpg)
EPA CO Emissions: 1.0 CO g/km
Torque: 110.0 Nm (11.2 kgf-m) @ 3950 RPM
Engine type: Parallel Twin, four-stroke
Fuel consumption: 4.90 litres/100 km (20.4 km/l)
Power/weight ratio: 0.4300 HP/kg (dry)
Bore x stroke: 97.6 x 80.0 mm
Compression: 11.0:1
Cooling system: Liquid
Fuel system: Injection
Starting: Electric
Ignition: Digital-inductive type via engine management system
Aspiration: Naturally aspirated
Valves per cylinder: 4

Transmission

Gearbox: 6-speed
Transmission type: Manual
Final drive: Chain
Clutch: Wet. multi-plate

Dimensions & weight

Wheelbase: 1570 mm
Overall width: 905 mm
Overall height: 1205 mm
Seat height: 870 mm
Dry weight: 207.0 kg
Wet weight: 230.0 kg
Fuel capacity: 16.00 litres
Oil capacity: 4.50 litres

Chassis & suspension

Frame: Tubular steel cradle
Front suspension: Showa 47mm fully adjustable upside down forksl
Rear suspension: Fully adjustable Ohlins twin shocks with piggy back reservoir
Front wheel travel: 250 mm
Rear wheel travel: 250 mm
Rake (fork angle): 26.9°
Trail: 129 mm

Brakes & wheels

Front brakes: Double disc. Brembo 2-piston floating caliper
Front brakes diameter: 320 mm
Rear brakes: Single disc. Brembo 2-piston floating caliper ABS
ABS: Yes
Front tyre: 90/90-21
Rear tyre: 150/70-17

Other

Color options: Cobalt Blue/Jet Black, Fusion White/Brooklands Green
Warranty: 24
Fuel Tank Material: Metal

Specs last verified against published sources: September 2026.

Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.

What changed, year to year

Differences highlighted

Specification	2019	2020	2021	2023	2024	2026
Capacity	1200 cc	1200 cc	1200 cc	1200 cc	1200 cc	1200 cc
Dry weight	205 kg	207 kg	207 kg	207 kg	207 kg	207 kg
Seat height	870 mm	870 mm	870 mm	870 mm	870 mm	870 mm
Fuel capacity	16 L	16 L	16 L	16 L	16 L	15 L

Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.

Rider Reviews

—

☆☆☆☆☆

Be the first to rate

MotorcycleDB

The 2020 Triumph Scrambler 1200XE is a top-of-the-line motorcycle that offers riders the perfect combination of style, performance, and off-road capabilities. With its powerful 1200cc engine and rugged design, this bike is built for adventure. The XE model also comes equipped with advanced technology features such as ride-by-wire throttle, advanced riding modes, and optimized cornering ABS. Whether cruising on the open road or tackling challenging off-road terrain, the 2020 Triumph Scrambler 1200XE is a versatile and reliable choice for riders looking for a thrilling experience.

The 2020 Triumph Scrambler 1200XE delivers a smooth and responsive ride, thanks to its high-quality suspension and chassis. Riders will appreciate the comfortable ergonomics and well-designed controls, making long rides a pleasure. The classic scrambler style combined with modern engineering and advanced features make this motorcycle a standout choice for enthusiasts. With its impressive power, handling, and design, the 2020 Triumph Scrambler 1200XE is a top contender in the competitive adventure bike market.
