2027 Triumph Tf 250 X
- 250 ccCapacity
- 47.4 hp (35.3 kW)Power
- 28.6 NmTorque
- 104 kgKerb weight
- 960 mmSeat height

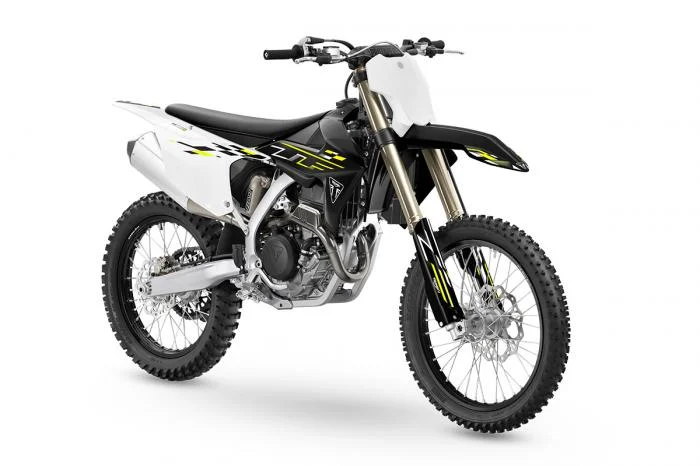

1 / 3The 2027 Triumph TF 250-X is a 250cc motocross racer for riders competing in the MX2 class or stepping up to a full-size competition bike. Its DOHC single-cylinder engine makes 47.4 hp at 13,500 rpm, with a five-speed gearbox, KYB suspension and an aluminium spine frame. It is best known as Triumph's first motocross bike, developed with Ricky Carmichael and Ivan Cervantes.
Check a bike by registration
Buying a used one? Enter its registration to see its MOT history and recorded mileage.
Engine
| Type | Single-cylinder, 4-stroke |
| Capacity | 250 cc |
| Bore x Stroke | 78 x 52.3 mm |
| Compression | 14.4:1 |
| Valves | 2 per cylinder |
| Cooling | Liquid |
| Fuel system | Carburettor |
| Starter | Electric |
Transmission
| Gearbox | 5-speed |
| Final drive | Chain |
| Clutch | Wet Multi-Plate Belleville Spring |
Performance
| Max power | 47.4 hp (35.3 kW) @ 13,500 rpm |
| Max torque | 28.6 Nm @ 9,000 rpm |
| Power to weight | 0.46 hp/kg (kerb) |
Chassis
| Frame | Aluminium, Spine |
| Front suspension | KYB 48mm USD coil-spring fork |
| Rear suspension | KYB coil shock |
| Front brake | Brembo twin-piston caliper |
| Rear brake | Brembo single-piston caliper |
| Tyres | 80/100-21 / 100/90-19 |
Dimensions
| Overall width | 836 mm |
| Overall height | 1,270 mm |
| Wheelbase | 1,492 mm |
| Seat height | 960 mm |
| Rake / trail | 27.4° / 116 mm |
Weights and capacities
| Kerb weight | 104 kg |
| Fuel tank | 7 l |
Engine
- Capacity
- 250.0 ccm
- Power
- 47.4 HP (35.3 kW) @ 13500 RPM
- Torque
- 28.6 Nm (2.9 kgf-m) @ 9000 RPM
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.4558 HP/kg (wet)
- Bore x stroke
- 78.0 x 52.3 mm
- Compression
- 14.4:1
- Cooling system
- Liquid
- Fuel system
- Carburettor
- Starting
- Electric
- Valves per cylinder
- 2
Transmission
- Gearbox
- 5-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Wet Multi-Plate Belleville Spring
Dimensions & weight
Chassis & suspension
- Frame
- Aluminium, Spine
- Front suspension
- KYB 48mm USD coil-spring fork
- Rear suspension
- KYB coil shock
- Front wheel travel
- 310 mm
- Rear wheel travel
- 305 mm
- Rake (fork angle)
- 27.4°
- Trail
- 116 mm
Brakes & wheels
- Front brakes
- Brembo twin-piston caliper
- Front brakes diameter
- 260 mm
- Rear brakes
- Brembo single-piston caliper
- Rear brakes diameter
- 220 mm
- Front tyre
- 80/100-21
- Rear tyre
- 100/90-19
Maintenance
- Tyre pressure (solo)
- Front 97 kPa (14 psi), rear 97 kPa (14 psi)
- Engine oil
- Fully synthetic 10W-50, API SN or higher, JASO MA
- Fuel grade
- Unleaded, 89 PON (AKI) or higher (95 RON minimum)
- Battery
- HJTZ5S-FP, 12 V 2.0 Ah
- Spark plug
- NGK LMAR9AI-8
- Coolant
- Triumph D2053 OAT, premixed 50/50
- Coolant capacity
- 0.95 litres
- Brake fluid
- DOT 4
- Maximum load
- 92 kg
Other
- Color options
- Triumph Racing Yellow/ Black/White
Specs last verified against published sources: .
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
45 fields on record · last reviewed 8 Nov 2026 · See all 45 specifications
Reliability & safety
How the score works »No reliability score, safety recalls or owner complaints on record for this bike yet.
Check a bike by VIN »How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built purely for closed-course motocross racing and dedicated off-road riding, not for street or commuter use.
- Built for
- A sharp, aggressive, high-revving single-cylinder racer that rewards aggressive throttle and body-positioning input with agile, precise handling.
- Not ideal for
- This bike is not suitable for daily road commuting, highway touring, carrying a passenger, or riders seeking a low, relaxed, comfort-oriented ride.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usModel history
3 model years on fileWhat’s new for the 2027 Triumph Tf 250 X
vs the 2026| Spec | 2026 | 2027 |
|---|---|---|
| Torque | 28.3 Nm (2.9 kgf-m or 20.9 ft.lbs) @ 9250 RPM | 28.6 Nm (2.9 kgf-m or 21.1 ft.lbs) @ 9000 RPM |
| Front suspension | KYB 48mm (1.88in) Coil Spring Fork, Compression/Rebound Adjustment | KYB 48mm USD coil-spring fork |
| Rear suspension | KYB Coil, Compression Adjustment (H and L Speed), Rebound Adjustment | KYB coil shock |
| Front brakes | Double disc. Brembo Twin 24mm (0.94in) Piston, | Brembo twin-piston caliper |
| Rear brakes | Single disc. Brembo Single 26mm (1.02in) Piston, | Brembo single-piston caliper |
| Cooling | — | Liquid |
What changed, year to year
Differences highlighted| Specification | 2025 | 2026 | 2027 |
|---|---|---|---|
| Capacity | 250 cc | 250 cc | 250 cc |
| Seat height | 960 mm | 960 mm | 960 mm |
| Fuel capacity | 7 L | 7 L | 7 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Own one
Parts diagrams
No diagrams for this bike yet. See which bikes have them.
Browse parts »Add it to My Garage
Free logbook: service history, reminders, recall alerts and running costs.
Add to Garage »Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Rider Reviews
Common questions
What is the engine size of the Triumph Tf 250 X?
The 2027 Triumph Tf 250 X has a Capacity of 250.0 ccm (15.26 cubic inches).
What engine power does the Triumph Tf 250 X have?
The 2027 Triumph Tf 250 X has a Power of 47.4 HP (35.3 kW) @ 13500 RPM.
How many gears does the Triumph Tf 250 X have?
The 2027 Triumph Tf 250 X has a Gearbox of 5-speed.
What is the torque of the Triumph Tf 250 X?
The 2027 Triumph Tf 250 X has a Torque of 28.6 Nm (2.9 kgf-m or 21.1 ft.lbs) @ 9000 RPM.
How much does the Triumph Tf 250 X weigh?
The 2027 Triumph Tf 250 X has a Wet weight of 104.0 kg (229.3 pounds).
