Touring Motorcycles
2009Victory Arlen Ness Victory Vision
33 fields on record
The 2009 Victory Arlen Ness Victory Vision is a premium custom cruiser designed for riders seeking distinctive styling and cruising comfort. Powered by a 1731cc V-twin engine producing 97 horsepower, it's best known for its aggressive Arlen Ness custom design and smooth highway performance, appealing to experienced cruiser enthusiasts who prioritize aesthetic appeal alongside reliable touring capability.
- Capacity
- 1731.0 ccm
- Engine
- V-Twin, four-stroke
- Gearbox
- 6-speed
- Dry weight
- 369.0 kg
- Seat height
- 673 mm
- Power
- 97.0 HP (71.3 kW)
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built as a plush, feature-laden bagger-style tourer for long highway miles rather than for spirited cornering or performance riding.
- Built for
- A bold, custom-styled cruiser with Arlen Ness flair that rewards riders who want to make a visual statement while cruising in comfort.
- Not ideal for
- Not a good fit for riders seeking sharp handling, off-road capability, or a lightweight, flickable ride.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 1731.0 ccm
- Power
- 97.0 HP (71.3 kW)
- Engine type
- V-Twin, four-stroke
- Power/weight ratio
- 0.2629 HP/kg (dry)
- Bore x stroke
- 101.0 x 108.0 mm
- Compression
- 9.4:1
- Cooling system
- Oil & air
- Fuel system
- Injection
- Starting
- Electric
- Valves per cylinder
- 4
- Torque
- Not on record - add it
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Belt
- Clutch
- Wet, multiplate
Dimensions & weight
- Wheelbase
- 1670 mm
- Overall length
- 2629 mm
- Seat height
- 673 mm
- Dry weight
- 369.0 kg
- Fuel capacity
- 17.00 litres
- Ground clearance
- 147 mm
- Oil capacity
- 4.70 litres
Chassis & suspension
- Front suspension
- Conventional telescopic fork, 43mm diameter, 5.1in/130mm travel
- Rear suspension
- Single, mono-tube gas,cast aluminum with rising rate linkage , 3.9in/100mm travel, preload adjustable spring
- Rake (fork angle)
- 29.0°
- Trail
- 137 mm
Brakes & wheels
- Front brakes
- Single disc. Floating rotor with 3-piston caliper
- Front brakes diameter
- 300 mm
- Rear brakes
- Single disc. Floating rotor with 2-piston caliper
- Rear brakes diameter
- 300 mm
- Front tyre
- 130/70-R18
- Rear tyre
- 180/60-R18
Other
- Color options
- Ness Series Custom Color
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2009 | 2010 |
|---|---|---|
| Capacity | 1731 cc | 1731 cc |
| Dry weight | 369 kg | 365 kg |
| Seat height | 673 mm | 673 mm |
| Fuel capacity | 17 L | 17 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Victory Arlen Ness Victory Vision?
The 2009 Victory Arlen Ness Victory Vision has a Capacity of 1731.0 ccm (105.63 cubic inches).
What engine power does the Victory Arlen Ness Victory Vision have?
The 2009 Victory Arlen Ness Victory Vision has a Power of 97.0 HP (71.3 kW).
How many gears does the Victory Arlen Ness Victory Vision have?
The 2009 Victory Arlen Ness Victory Vision has a Gearbox of 6-speed.
How much does the Victory Arlen Ness Victory Vision weigh?
The 2009 Victory Arlen Ness Victory Vision has a Dry weight of 369.0 kg (813.5 pounds).
Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Similar bikes
Same category, weighted similarity
2011 Victory Arlen Ness Vision
1731 cc · 395 kg · 673 mm
2011 Victory Cory Ness Cross Country
1731 cc · 347 kg · 667 mm
2011 Harley-Davidson FLTRU Road Glide Ultra
1688 cc · 386 kg · 693 mm

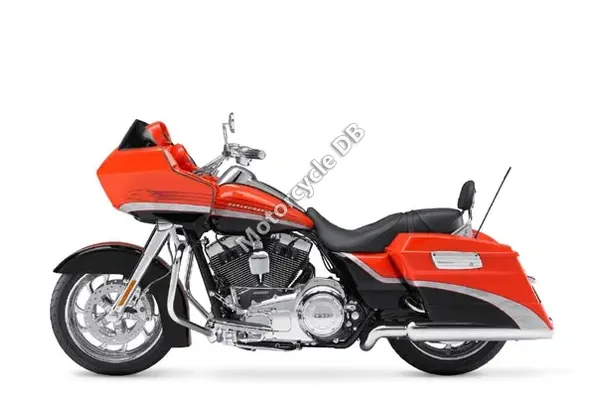

2009 Harley-Davidson FLTRSE3 CVO Road Glide
