Naked Motorcycles
2016BMW R Nine T Scrambler
39 fields on record
The 2016 BMW R nineT Scrambler appeals to riders seeking retro styling with modern reliability and versatility. Known for its iconic boxer engine character and distinctive scrambler aesthetic, it excels both on and off pavement with capable handling. The shaft drive and 18-liter fuel capacity provide practical touring capability while maintaining the spirited performance enthusiasts demand.
- Capacity
- 1170.0 ccm
- Engine
- Boxer, four-stroke
- Gearbox
- 6-speed
- Dry weight
- 220.0 kg
- Seat height
- 820 mm
- Power
- 110.0 HP (80.3 kW) @ 7500 RPM
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Designed as a stylish scrambler-styled roadster for spirited street riding rather than genuine off-road work.
- Built for
- Delivers strong, characterful boxer torque with classic air-cooled charm, rewarding riders who enjoy mechanical feel over outright refinement.
- Not ideal for
- Not ideal for riders seeking serious off-road capability, plush long-distance comfort, or a lightweight beginner-friendly first bike.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usRange and running costs
Worked out in your browser - nothing is sent to usBased on the maker's published fuel consumption and tank size. Real-world figures depend on how and where you ride, and the last litres of a tank are reserve. Prices shown greyed are examples - type your own.
Engine
- Capacity
- 1170.0 ccm
- Power
- 110.0 HP (80.3 kW) @ 7500 RPM
- CO2 Emissions
- 104 CO2 g/km
- Torque
- 119.0 Nm (12.1 kgf-m) @ 6000 RPM
- Engine type
- Boxer, four-stroke
- Fuel consumption
- 4.50 litres/100 km (22.2 km/l)
- Power/weight ratio
- 0.5000 HP/kg (dry)
- Bore x stroke
- 101.0 x 73.0 mm
- Compression
- 12.0:1
- Cooling system
- Oil & air
- Fuel system
- Injection
- Starting
- Electric
- Valves per cylinder
- 4
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Shaft
- Clutch
- Single dry plate clutch, hydraulically operated
Dimensions & weight
- Wheelbase
- 1522 mm
- Overall length
- 2175 mm
- Overall width
- 880 mm
- Overall height
- 1330 mm
- Seat height
- 820 mm
- Dry weight
- 220.0 kg
- Fuel capacity
- 18.00 litres
Chassis & suspension
- Frame
- Four-section frame consisting of one front and three rear sections, load-bearing engine-gearbox unit, removable pillion frame for single ride use
- Front suspension
- Telescopic forks with 43 mm fixed-tube diameter
- Rear suspension
- Cast aluminium single swinging arm with BMW Motorrad Paralever; central spring strut, spring preload steplessly adjustable by hook wrench, rebound-stage damping adjustable
- Front wheel travel
- 125 mm
- Rear wheel travel
- 140 mm
- Rake (fork angle)
- 28.5°
- Trail
- 112 mm
Brakes & wheels
- Front brakes
- Double disc
- Front brakes diameter
- 320 mm
- Rear brakes
- Single disc
- Rear brakes diameter
- 265 mm
- Front tyre
- 120/70-ZR17
- Rear tyre
- 180/55-ZR17
Other
- Color options
- Grey
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2016 | 2018 | 2020 | 2022 | 2024 |
|---|---|---|---|---|---|
| Capacity | 1170 cc | 1170 cc | 1170 cc | 1170 cc | 1170 cc |
| Dry weight | 220 kg | 220 kg | 220 kg | 223 kg | 223 kg |
| Seat height | 820 mm | 820 mm | 820 mm | 820 mm | 820 mm |
| Fuel capacity | 18 L | 18 L | 17 L | 17 L | 17 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the BMW R Nine T Scrambler?
The 2016 BMW R Nine T Scrambler has a Capacity of 1170.0 ccm (71.40 cubic inches).
What engine power does the BMW R Nine T Scrambler have?
The 2016 BMW R Nine T Scrambler has a Power of 110.0 HP (80.3 kW) @ 7500 RPM.
How many gears does the BMW R Nine T Scrambler have?
The 2016 BMW R Nine T Scrambler has a Gearbox of 6-speed.
What is the torque of the BMW R Nine T Scrambler?
The 2016 BMW R Nine T Scrambler has a Torque of 119.0 Nm (12.1 kgf-m or 87.8 ft.lbs) @ 6000 RPM.
How much does the BMW R Nine T Scrambler weigh?
The 2016 BMW R Nine T Scrambler has a Dry weight of 220.0 kg (485.0 pounds).
Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Similar bikes
Same category, weighted similarity

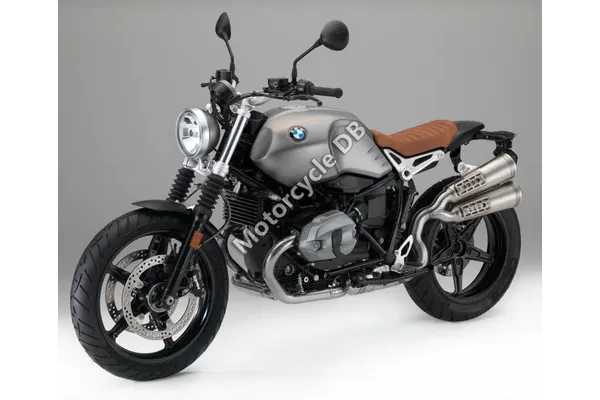

2018 BMW R Nine T Scrambler
1170 cc · 220 kg · 820 mm

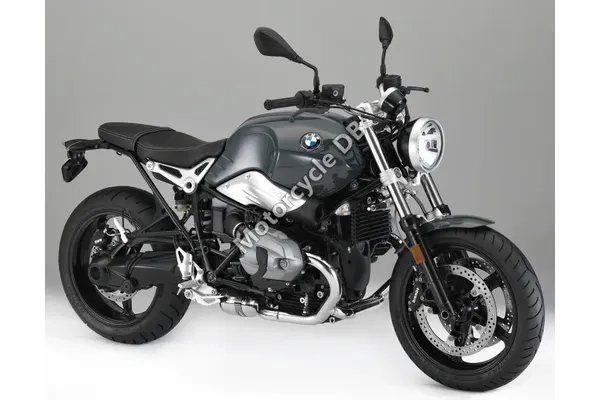

2017 BMW R Nine T Pure
1170 cc · 219 kg · 805 mm
2016 Moto Guzzi Griso 1200 S.e.
1151 cc · 240 kg · 800 mm

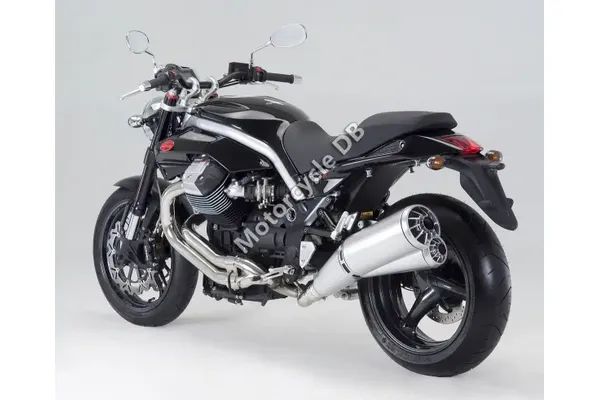

2012 Moto Guzzi Griso 1200 8V
1151 cc · 222 kg · 800 mm

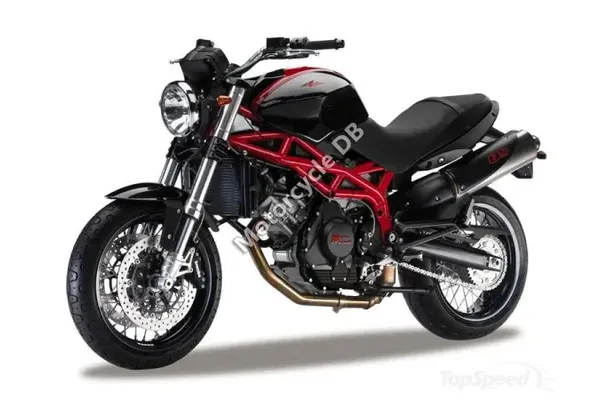

2012 Moto Morini 9 1-2
