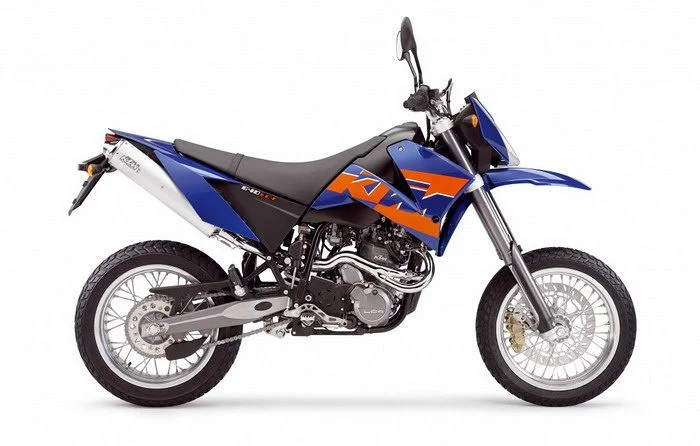

2006KTM 640 LC4 Supermoto
37 fields on record
The 2006 KTM 640 LC4 Supermoto is a big-single road bike with dirt-bike roots and supermoto wheels. Its liquid-cooled 625cc four-stroke single makes 54.8 hp and 55 Nm through a five-speed gearbox. A tall 910 mm seat, 149 kg dry weight and a 12-litre tank make it lively.
- Capacity
- 625.0 ccm
- Engine
- Single, four-stroke
- Gearbox
- 5-speed
- Dry weight
- 149.0 kg
- Seat height
- 910 mm
- Power
- 54.8 HP (40.3 kW)
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built for sharp, flickable cornering fun on twisty tarmac and supermoto-style thrills rather than covering long distances.
- Built for
- A raw, mechanical, big-single supermoto that rewards aggressive, engaged riding with immediate steering response and strong midrange torque.
- Not ideal for
- Not a good fit for riders wanting plush comfort, pillion practicality, or effortless long-haul touring capability.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 625.0 ccm
- Power
- 54.8 HP (40.3 kW)
- Torque
- 55.0 Nm (5.6 kgf-m) @ 5500 RPM
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.3678 HP/kg (dry)
- Bore x stroke
- 102.0 x 80.0 mm
- Compression
- 11.5:1
- Cooling system
- Liquid
- Fuel system
- Carburettor
- Starting
- Electric & kick
- Ignition
- Kokusan DC-CDI
- Valves per cylinder
- 4
- Lubrication system
- Pressure lubrication with 2 oil pumps
Transmission
- Gearbox
- 5-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Wet multi-disc clutch, operated hydraulically
Dimensions & weight
- Wheelbase
- 1510 mm
- Seat height
- 910 mm
- Dry weight
- 149.0 kg
- Fuel capacity
- 12.00 litres
- Ground clearance
- 290 mm
- Reserve fuel capacity
- 2.50 litres
Chassis & suspension
- Frame
- Double ground, chrommoly-steel frame, powder-coated
- Front suspension
- WP-USD 48 MA
- Rear suspension
- WP - Monoshock
- Front wheel travel
- 265 mm
- Rear wheel travel
- 310 mm
- Rake (fork angle)
- 27.0°
- Trail
- 99 mm
Brakes & wheels
- Front brakes
- Single disc
- Front brakes diameter
- 320 mm
- Rear brakes
- Single disc
- Rear brakes diameter
- 220 mm
- Front tyre
- 120/70-17
- Rear tyre
- 160/60-17
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2003 | 2004 | 2005 | 2006 | 2007 |
|---|---|---|---|---|---|
| Capacity | 625 cc | 625 cc | 625 cc | 625 cc | 625 cc |
| Dry weight | 149 kg | 149 kg | 149 kg | 149 kg | 149 kg |
| Seat height | 910 mm | 910 mm | 910 mm | 910 mm | 910 mm |
| Fuel capacity | 12 L | 12 L | 12 L | 12 L | 9.2 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the KTM 640 LC4 Supermoto?
The 2006 KTM 640 LC4 Supermoto has a Capacity of 625.0 ccm (38.14 cubic inches).
What engine power does the KTM 640 LC4 Supermoto have?
The 2006 KTM 640 LC4 Supermoto has a Power of 54.8 HP (40.3 kW).
How many gears does the KTM 640 LC4 Supermoto have?
The 2006 KTM 640 LC4 Supermoto has a Gearbox of 5-speed.
What is the torque of the KTM 640 LC4 Supermoto?
The 2006 KTM 640 LC4 Supermoto has a Torque of 55.0 Nm (5.6 kgf-m or 40.6 ft.lbs) @ 5500 RPM.
How much does the KTM 640 LC4 Supermoto weigh?
The 2006 KTM 640 LC4 Supermoto has a Dry weight of 149.0 kg (328.5 pounds).
