Supermotos

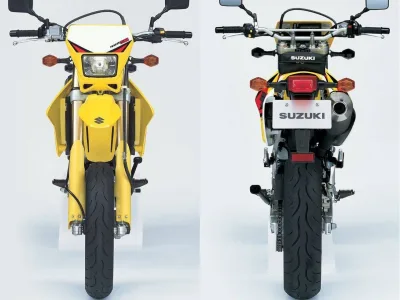

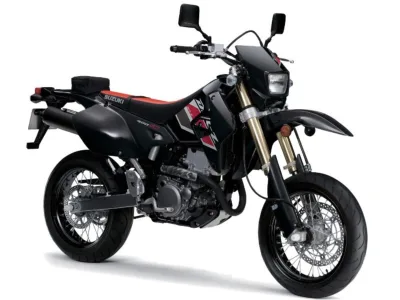

2005Suzuki DR-Z400SM
35 fields on record
The 2005 Suzuki DR-Z 400 SM is a lightweight, versatile dual-sport machine built for riders seeking an affordable, easy-to-handle bike. Its 398cc liquid-cooled single-cylinder engine delivers accessible power suitable for both street and light off-road use. Known for its reliability, low seat height, and manageable weight, it remains a popular choice for beginners and experienced riders alike.
- Capacity
- 398.0 ccm
- Engine
- Single, four-stroke
- Gearbox
- 5-speed
- Dry weight
- 134.0 kg
- Seat height
- 890 mm
- Power
- 31.9 HP (23.5 kW)
Other years
2005
2006
2007
2008
2009
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021
2022
2023
2024
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built for flickable, playful riding on tight backroads and around town rather than covering long distances or carrying heavy loads.
- Built for
- A fun, mischievous street bike that thrives on quick direction changes, wheelies, and carving corners rather than outright top speed.
- Not ideal for
- Not a good match for riders wanting long-distance touring comfort, high-speed highway cruising, or serious offroad capability.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 398.0 ccm
- Power
- 31.9 HP (23.5 kW)
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.2381 HP/kg (dry)
- Bore x stroke
- 90.0 x 62.6 mm
- Compression
- 11.3:1
- Cooling system
- Liquid
- Fuel system
- Carburettor
- Starting
- Electric
- Ignition
- Digital/DC-CDI
- Valves per cylinder
- 4
- Lubrication system
- Dry sump
- Torque
- Not on record - add it
Transmission
- Gearbox
- 5-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Multi-plate, wet type, manual release
Dimensions & weight
- Wheelbase
- 1460 mm
- Overall length
- 2220 mm
- Overall width
- 870 mm
- Overall height
- 1185 mm
- Seat height
- 890 mm
- Dry weight
- 134.0 kg
- Wet weight
- 146.0 kg
- Fuel capacity
- 10.00 litres
- Ground clearance
- 300 mm
Chassis & suspension
- Front suspension
- Inverted telescopic, oil-damped, adjustable compression and rebound damping
- Rear suspension
- Link-type, fully-adjustable spring preload, adjustable compression and rebound damping
Brakes & wheels
- Front brakes
- Single disc
- Front brakes diameter
- 300 mm
- Rear brakes
- Single disc
- Rear brakes diameter
- 240 mm
- Front tyre
- 120/70-17
- Rear tyre
- 140/70-17
Other
- Color options
- Yellow, Black
Specs last verified against published sources: .
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2005 | 2010 | 2015 | 2019 | 2024 |
|---|---|---|---|---|---|
| Capacity | 398 cc | 396 cc | 398 cc | 398 cc | 398 cc |
| Dry weight | 134 kg | 134 kg | 134 kg | 134 kg | 134 kg |
| Seat height | 890 mm | 890 mm | 890 mm | 890 mm | 890 mm |
| Fuel capacity | 10 L | 10 L | 9.8 L | 10 L | 10 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Suzuki DR-Z400SM?
The 2005 Suzuki DR-Z400SM has a Capacity of 398.0 ccm (24.29 cubic inches).
What engine power does the Suzuki DR-Z400SM have?
The 2005 Suzuki DR-Z400SM has a Power of 31.9 HP (23.5 kW).
How many gears does the Suzuki DR-Z400SM have?
The 2005 Suzuki DR-Z400SM has a Gearbox of 5-speed.
How much does the Suzuki DR-Z400SM weigh?
The 2005 Suzuki DR-Z400SM has a Dry weight of 134.0 kg (295.4 pounds).
