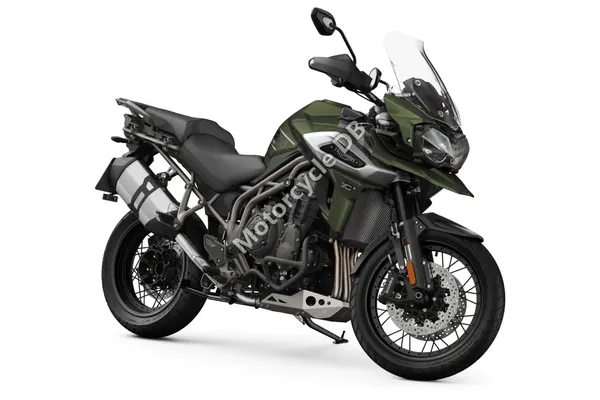

2020Triumph Tiger 1200 XCA

Rate this bike

46 fields on record

The 2020 Triumph Tiger 1200 XCA is a middleweight adventure tourer engineered for riders seeking genuine off-road capability combined with everyday usability. Known for its balanced handling, accessible seat height, and comprehensive LCD instrumentation including tyre pressure monitoring, it excels for both experienced adventurers and those new to adventure touring. Its heated seats and manageable 248kg weight make it ideal for riders tackling varied terrain without sacrificing comfort.

Capacity: 1215.0 ccm
Engine: In-line three-cylinder, four-stroke
Gearbox: 6-speed
Dry weight: 248.0 kg
Seat height: 855 mm
Power: 141.0 HP (102.9 kW) @ 9350 RPM

⇄ Compare with another bike ＋ Add to garage All model years

What’s new for the 2020 Triumph Tiger 1200 XCA

vs the 2019

Spec	2019	2020
Power	139.0 HP (101.5 kW) @ 9350 RPM	141.0 HP (102.9 kW) @ 9350 RPM
Dry weight	242.0 kg (533.5 pounds)	248.0 kg (546.7 pounds)
Seat height	835 mm (32.9 inches)	855 mm (33.7 inches)
Front brakes	Double disc. Floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS.	Double disc. Floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS

Other years 2018 2019 2020 2021

How it rides

Editorial estimate from the spec sheet - not lab tested

Off-road & trail72%

Cornering75%

City riding55%

Daily riding70%

Touring94%

Two-up88%

Track45%

Best for: Built for long-distance, go-anywhere touring with premium electronics, comfort features, and genuine off-road capability.
Built for: A refined, torquey triple-powered flagship adventure tourer that blends strong performance with luxury touring comforts and shaft-drive reliability.
Not ideal for: Not ideal for riders wanting a light, flickable city commuter or a dedicated track-focused sportbike.

Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.

Will it fit you?

Worked out in your browser - nothing is sent to us

Your height

Inseam (optional)

Units

At 855mm, a rider of 68.9" with a 31" (estimated) inseam will reach the ground with tip-toe one foot on the 2020 Triumph Tiger 1200 XCA, with a moderate knee angle of around 95 degrees and a slightly forward riding position.

Assumes about 30mm of suspension sag once seated. This is an approximation from category-typical geometry, not a measurement of this bike or of you - sit on one before you buy.

More bikes at 821-900 mm — Long Legs →

Find bikes that fit your height →

Range and running costs

Worked out in your browser - nothing is sent to us

Units

Currency

Fuel per litre

Riding a year

Based on the maker's published fuel consumption and tank size. Real-world figures depend on how and where you ride, and the last litres of a tank are reserve. Prices shown greyed are examples - type your own.

Full specifications

Engine

Capacity: 1215.0 ccm
Power: 141.0 HP (102.9 kW) @ 9350 RPM
CO2 Emissions: 133 CO2 g/km
EPA Certificate No.: LTDXC1.20SAL-005-R01
EPA Est. Fuel Consumption: 5.65 L/100km (41.6 US mpg)
EPA CO Emissions: 2.0 CO g/km
Torque: 122.0 Nm (12.4 kgf-m) @ 7600 RPM
Engine type: In-line three-cylinder, four-stroke
Fuel consumption: 4.90 litres/100 km (20.4 km/l)
Power/weight ratio: 0.5685 HP/kg (dry)
Bore x stroke: 85.0 x 71.4 mm
Compression: 11.0:1
Cooling system: Liquid
Fuel system: Injection
Starting: Electric
Aspiration: Naturally aspirated
Valves per cylinder: 4

Transmission

Gearbox: 6-speed
Transmission type: Manual
Final drive: Shaft
Clutch: Wet, multi-plate hydraulically operated, torque assist

Dimensions & weight

Wheelbase: 1520 mm
Overall length: 2248 mm
Overall width: 930 mm
Overall height: 1540 mm
Seat height: 855 mm
Dry weight: 248.0 kg
Fuel capacity: 20.00 litres
Oil capacity: 4.00 litres
Ground clearance: Not on record - add it

Chassis & suspension

Frame: Tubular steel trellis frame. Single-sided, cast aluminium alloy swing arm with shaft drive.
Front suspension: WP 48 mm upside down forks, electronically adjustable damping,
Rear suspension: WP monoshock, electronically adjustable semi active damping,
Front wheel travel: 190 mm
Rear wheel travel: 193 mm
Rake (fork angle): 23.2°
Trail: 100 mm

Brakes & wheels

Front brakes: Double disc. Floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS
Front brakes diameter: 305 mm
Rear brakes: Single disc. Nissin 2-piston sliding caliper, Switchable ABS
Rear brakes diameter: 282 mm
ABS: Yes
Front tyre: 120/70-R19
Rear tyre: 170/60-R17

Other

Color options: Gray, White
Warranty: 24

Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.

What changed, year to year

Differences highlighted

Specification	2018	2019	2020	2021
Capacity	1215 cc	1215 cc	1215 cc	1215 cc
Dry weight	248 kg	242 kg	248 kg	248 kg
Seat height	835 mm	835 mm	855 mm	835 mm
Fuel capacity	20 L	20 L	20 L	20 L

Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.

Rider Reviews

—

☆☆☆☆☆

Be the first to rate

MotorcycleDB

The 2020 Triumph Tiger 1200 XCA is a top-of-the-line adventure motorcycle that is sure to impress riders of all skill levels. With a powerful 1215cc engine, this bike delivers an exhilarating ride that can conquer any terrain. The XCA model is equipped with state-of-the-art technology including full-color TFT display, keyless ignition, and advanced riding modes for ultimate control and customization. Whether you're navigating city streets or tackling off-road trails, the Tiger 1200 XCA offers a smooth and responsive performance that will leave you feeling confident and in command.

Triumph has truly outdone themselves with the 2020 Tiger 1200 XCA. This premium adventure bike boasts a comfortable and ergonomic design, making long-distance travel a breeze. The XCA model also comes with a suite of advanced safety features to ensure a secure and enjoyable ride. With its rugged yet refined appearance and impressive performance capabilities, the 2020 Triumph Tiger 1200 XCA is the perfect choice for riders seeking a high-performance adventure motorcycle that can handle any challenge.
