Cruisers
2003Yamaha XVS 650 DragStar
33 fields on record

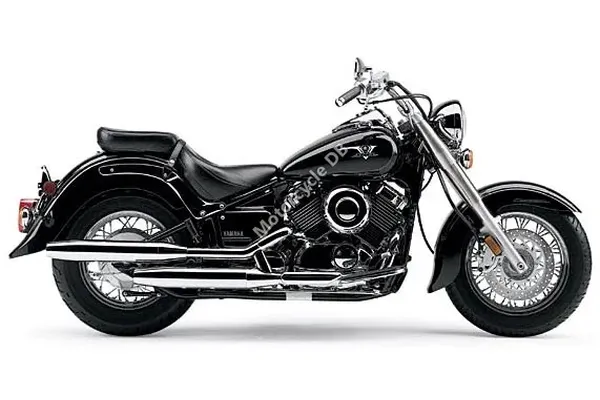

The 2003 Yamaha XVS 650 Drag Star is a lightweight cruiser ideal for riders seeking an accessible entry point into custom motorcycle culture. Known for its manageable 649cc V-twin engine delivering smooth torque and approachable ergonomics, it appeals to beginning and smaller-framed riders. Its classic styling and low seat height make it perfect for those prioritizing comfort and easy ground reach over raw power.
- Capacity
- 649.0 ccm
- Engine
- V-Twin
- Gearbox
- 5-speed
- Dry weight
- 214.0 kg
- Seat height
- 695 mm
- Power
- 39.4 HP (29.0 kW) @ 6500 RPM
What’s new for the 2003 Yamaha XVS 650 DragStar
vs the 2002| Spec | 2002 | 2003 |
|---|---|---|
| Power | 40.0 HP (29.4 kW) @ 6500 RPM | 39.4 HP (29.0 kW) @ 6500 RPM |
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built as a classic-styled cruiser for relaxed, low-revving V-twin riding rather than outright performance.
- Built for
- A laid-back, torque-focused cruiser that delivers a traditional V-twin feel with easygoing, unintimidating power delivery.
- Not ideal for
- Not a good fit for riders seeking sharp cornering performance, high-speed touring, or any off-road capability.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usEngine
- Capacity
- 649.0 ccm
- Power
- 39.4 HP (29.0 kW) @ 6500 RPM
- Torque
- 51.0 Nm (5.2 kgf-m)
- Engine type
- V-Twin
- Power/weight ratio
- 0.1841 HP/kg (dry)
- Bore x stroke
- 81.0 x 63.0 mm
- Compression
- 9.0:1
- Cooling system
- Air
- Fuel system
- Carburettor
- Starting
- Electric
- Valves per cylinder
- 2
Transmission
- Gearbox
- 5-speed
- Transmission type
- Manual
- Final drive
- Shaft
- Clutch
- Wet, multiple disc
Dimensions & weight
- Wheelbase
- 1610 mm
- Overall length
- 2340 mm
- Overall width
- 880 mm
- Overall height
- 1070 mm
- Seat height
- 695 mm
- Dry weight
- 214.0 kg
- Fuel capacity
- 16.00 litres
- Ground clearance
- 140 mm
Chassis & suspension
- Front wheel travel
- 140 mm
- Rear wheel travel
- 86 mm
Brakes & wheels
- Front brakes
- Dual disc
- Front brakes diameter
- 298 mm
- Rear brakes
- Single disc
- Rear brakes diameter
- 200 mm
- Front tyre
- 100/90-ZR19 M/C 57S
- Rear tyre
- 170/80-15 M/C 77S
Other
- Color options
- Silver Metallic, Black
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 1997 | 1999 | 2003 | 2005 | 2007 |
|---|---|---|---|---|---|
| Capacity | 649 cc | 649 cc | 649 cc | 649 cc | 649 cc |
| Dry weight | 214 kg | 214 kg | 214 kg | 220 kg | 229 kg |
| Seat height | 695 mm | 695 mm | 695 mm | 695 mm | 710 mm |
| Fuel capacity | 16 L | 16 L | 16 L | 16 L | 16 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Yamaha XVS 650 DragStar?
The 2003 Yamaha XVS 650 DragStar has a Capacity of 649.0 ccm (39.60 cubic inches).
What engine power does the Yamaha XVS 650 DragStar have?
The 2003 Yamaha XVS 650 DragStar has a Power of 39.4 HP (29.0 kW) @ 6500 RPM.
How many gears does the Yamaha XVS 650 DragStar have?
The 2003 Yamaha XVS 650 DragStar has a Gearbox of 5-speed.
What is the torque of the Yamaha XVS 650 DragStar?
The 2003 Yamaha XVS 650 DragStar has a Torque of 51.0 Nm (5.2 kgf-m or 37.6 ft.lbs).
How much does the Yamaha XVS 650 DragStar weigh?
The 2003 Yamaha XVS 650 DragStar has a Dry weight of 214.0 kg (471.8 pounds).
