Cruisers
2009Yamaha Raider
39 fields on record
The 2009 Yamaha Raider is a heavyweight cruiser designed for riders seeking aggressive styling with genuine performance. Powered by a massive 1851cc V-twin engine, it delivers commanding torque and distinctive character through a belt-driven 5-speed transmission. Known for its low-slung posture, customizable design, and highway-friendly comfort, the Raider appeals to cruiser enthusiasts wanting American muscle with Japanese reliability.
- Capacity
- 1851.9 ccm
- Engine
- V-Twin, four-stroke
- Gearbox
- 5-speed
- Dry weight
- 313.9 kg
- Seat height
- 693 mm
- Power
- 90.0 HP (66.2 kW)
What’s new for the 2009 Yamaha Raider
vs the 2008| Spec | 2008 | 2009 |
|---|---|---|
| Fuel capacity | 15.50 litres (4.09 US gallons) | 15.90 litres (4.20 US gallons) |
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built for boulevard cruising and making a visual statement with its massive 210mm rear tire and stretched custom-bike proportions rather than for outright speed or cornering agility.
- Built for
- A big-inch, air-cooled V-twin custom cruiser with OHV torque character, a laid-back riding position, and styling that prioritizes drag-bike-inspired aesthetics over sport performance.
- Not ideal for
- Not a good match for riders seeking sharp handling, off-road capability, or a lightweight, flickable machine for tight technical roads.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usRange and running costs
Worked out in your browser - nothing is sent to usBased on the maker's published fuel consumption and tank size. Real-world figures depend on how and where you ride, and the last litres of a tank are reserve. Prices shown greyed are examples - type your own.
Engine
- Capacity
- 1851.9 ccm
- Power
- 90.0 HP (66.2 kW)
- CO2 Emissions
- 130 CO2 g/km
- Engine type
- V-Twin, four-stroke
- Fuel consumption
- 5.60 litres/100 km (17.9 km/l)
- Power/weight ratio
- 0.2867 HP/kg (dry)
- Bore x stroke
- 100.0 x 118.0 mm
- Compression
- 9.5:1
- Cooling system
- Air
- Fuel system
- Injection
- Starting
- Electric
- Ignition
- TCI
- Valves per cylinder
- 4
- Torque
- Not on record - add it
Transmission
- Gearbox
- 5-speed
- Transmission type
- Manual
- Final drive
- Belt
- Clutch
- Wet multiplate clutch
Dimensions & weight
- Wheelbase
- 1801 mm
- Overall length
- 2570 mm
- Overall width
- 925 mm
- Overall height
- 1166 mm
- Seat height
- 693 mm
- Dry weight
- 313.9 kg
- Wet weight
- 331.1 kg
- Fuel capacity
- 15.90 litres
- Ground clearance
- 147 mm
Chassis & suspension
- Frame
- Double cradle
- Front suspension
- Telescopic fork
- Rear suspension
- Swingarm
- Front wheel travel
- 130 mm
- Rear wheel travel
- 89 mm
Brakes & wheels
- Front brakes
- Double disc
- Front brakes diameter
- 298 mm
- Rear brakes
- Single disc
- Rear brakes diameter
- 310 mm
- Front tyre
- 120/70-21
- Rear tyre
- 210/40-18
Other
- Color options
- Liquid silver w/flames, Raven
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2008 | 2009 | 2011 | 2014 | 2015 | 2017 |
|---|---|---|---|---|---|---|
| Capacity | 1852 cc | 1852 cc | 1852 cc | 1852 cc | 1852 cc | 1852 cc |
| Dry weight | 314 kg | 314 kg | 314 kg | 314 kg | 314 kg | 314 kg |
| Seat height | 693 mm | 693 mm | 696 mm | 696 mm | 696 mm | 696 mm |
| Fuel capacity | 15.5 L | 15.9 L | 15.9 L | 15.9 L | 15.9 L | 16 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the Yamaha Raider?
The 2009 Yamaha Raider has a Capacity of 1851.9 ccm (113.01 cubic inches).
What engine power does the Yamaha Raider have?
The 2009 Yamaha Raider has a Power of 90.0 HP (66.2 kW).
How many gears does the Yamaha Raider have?
The 2009 Yamaha Raider has a Gearbox of 5-speed.
How much does the Yamaha Raider weigh?
The 2009 Yamaha Raider has a Dry weight of 313.9 kg (692.0 pounds).
Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Similar bikes
Same category, weighted similarity

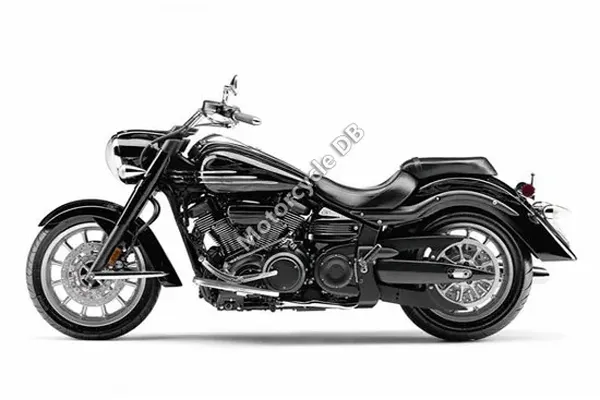

2009 Yamaha Roadliner Midnight
1852 cc · 320 kg · 706 mm

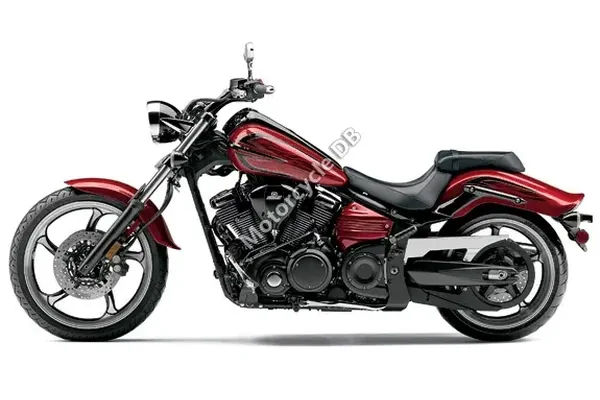

2010 Yamaha Star Raider
1852 cc · 314 kg · 696 mm
2009 Ultra Lowdown Drop Seat
1852 cc · 660 mm
2010 Ultra Lowdown Drop Seat
1852 cc · 660 mm

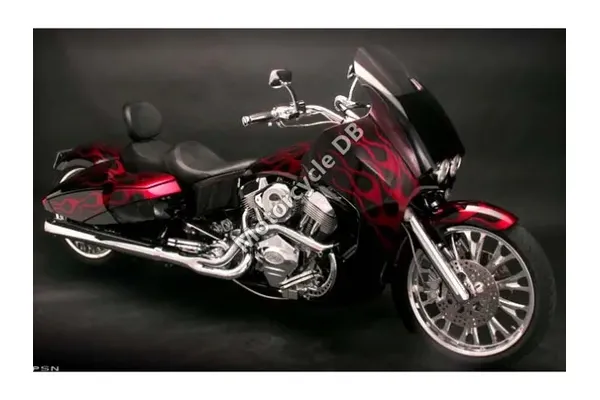

2009 Big Bear Choppers GTX Standard 114
1868 cc · 387 kg · 648 mm

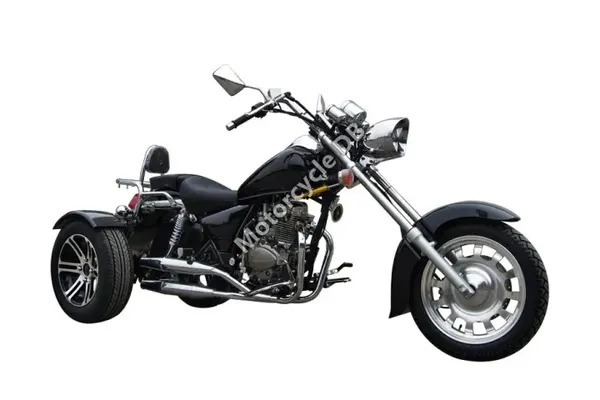

2009 Samurai Chopper Type 5 Evo
