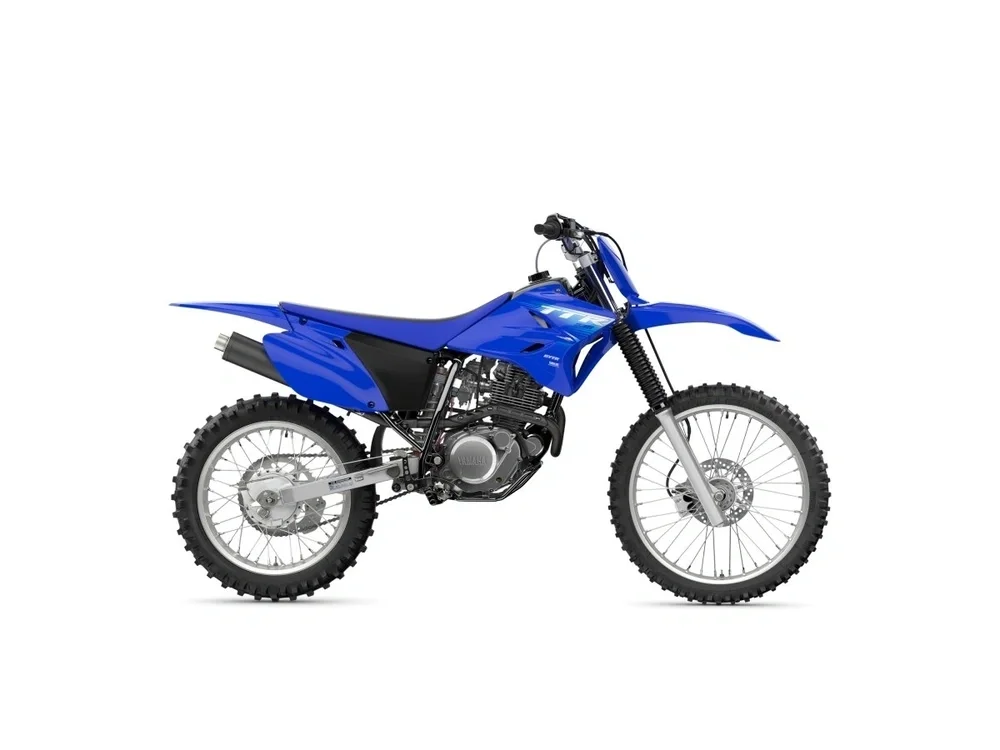

2027 Yamaha TT-R230
- 223 ccCapacity
- 19.6 hp (14.4 kW)Power
- 18.6 NmTorque
- 113.9 kgKerb weight
- 871 mmSeat height

The 2027 Yamaha TT-R230 is a versatile single-cylinder enduro bike designed for beginner to intermediate off-road riders seeking reliable trail performance. Known for its lightweight, user-friendly handling and proven air-cooled four-stroke engine, it excels in recreational trail riding and light adventure use. Its affordable price point and low-maintenance carburetor system make it an ideal entry-level motorcycle for off-road exploration.
Check a bike by registration
Buying a used one? Enter its registration to see its MOT history and recorded mileage.
Engine
| Type | Single-cylinder, 4-stroke |
| Capacity | 223 cc |
| Bore x Stroke | 70 x 58 mm |
| Compression | 9.5:1 |
| Valves | 2 per cylinder |
| Cooling | Air |
| Fuel system | Carburettor |
| Ignition | CDI |
| Starter | Electric |
Transmission
| Gearbox | 6-speed |
| Final drive | Chain |
| Clutch | Multiplate wet clutch |
Performance
| Max power | 19.6 hp (14.4 kW) |
| Max torque | 18.6 Nm @ 6,000 rpm |
| Power to weight | 0.17 hp/kg (kerb) |
Chassis
| Frame | Steel, diamond. Aluminum box-section swingarm. |
| Front suspension | Telescopic fork |
| Rear suspension | Single shock |
| Front brake | Single disc. Hydraulic |
| Rear brake | Expanding brake (drum brake) |
| Tyres | 80/100-21 / 100/100-18 |
Dimensions
| Overall length | 2,065 mm |
| Overall width | 800 mm |
| Overall height | 1,181 mm |
| Wheelbase | 1,384 mm |
| Seat height | 871 mm |
| Ground clearance | 295 mm |
| Rake / trail | 27° / 112 mm |
Weights and capacities
| Kerb weight | 113.9 kg |
| Dry weight | 107 kg |
| Fuel tank | 8 l |
Engine
- Capacity
- 223.0 ccm
- Power
- 19.6 HP (14.4 kW)
- Torque
- 18.6 Nm (1.9 kgf-m) @ 6000 RPM
- Engine type
- Single, four-stroke
- Power/weight ratio
- 0.1832 HP/kg (dry)
- Bore x stroke
- 70.0 x 58.0 mm
- Compression
- 9.5:1
- Cooling system
- Air
- Fuel system
- Carburettor
- Starting
- Electric
- Ignition
- CDI
- Valves per cylinder
- 2
- Lubrication system
- Wet, multidisc
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Multiplate wet clutch
Dimensions & weight
- Wheelbase
- 1384 mm
- Overall length
- 2065 mm
- Overall width
- 800 mm
- Overall height
- 1181 mm
- Seat height
- 871 mm
- Dry weight
- 107.0 kg
- Wet weight
- 113.9 kg
- Fuel capacity
- 8.00 litres
- Ground clearance
- 295 mm
Chassis & suspension
- Frame
- Steel, diamond. Aluminum box-section swingarm.
- Front suspension
- Telescopic fork
- Rear suspension
- Single shock
- Front wheel travel
- 240 mm
- Rear wheel travel
- 221 mm
- Rake (fork angle)
- 27.0°
- Trail
- 112 mm
Brakes & wheels
- Front brakes
- Single disc. Hydraulic
- Front brakes diameter
- 220 mm
- Rear brakes
- Expanding brake (drum brake)
- Rear brakes diameter
- 130 mm
- Front tyre
- 80/100-21
- Rear tyre
- 100/100-18
Other
- Color options
- Team Yamaha Blue
- Comments
- Returning 2027 model.
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
42 fields on record · last reviewed 24 Sep 2026 · See all 42 specifications
Reliability & safety
How the score works »No reliability score, safety recalls or owner complaints on record for this bike yet.
Check a bike by VIN »How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built as a lightweight, easygoing off-road and trail machine for exploring dirt roads, single-track, and casual enduro riding rather than speed or long-distance travel.
- Built for
- A simple, durable, carbureted air-cooled trail bike that favors low-maintenance reliability and playful handling over outright performance.
- Not ideal for
- This is not the right bike for highway commuting, carrying a passenger, or anyone seeking strong acceleration or high top speed.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usModel history
21 model years on fileWhat changed, year to year
Differences highlighted| Specification | 2007 | 2012 | 2017 | 2022 | 2027 |
|---|---|---|---|---|---|
| Capacity | 223 cc | 223 cc | 223 cc | 223 cc | 223 cc |
| Dry weight | 110 kg | 107 kg | 107 kg | 107 kg | 107 kg |
| Seat height | 871 mm | 869 mm | 871 mm | 871 mm | 871 mm |
| Fuel capacity | 7.9 L | 8 L | 8 L | 8 L | 8 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Own one
Parts diagrams
No diagrams for this bike yet. See which bikes have them.
Browse parts »Add it to My Garage
Free logbook: service history, reminders, recall alerts and running costs.
Add to Garage »Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Rider Reviews
Common questions
What is the engine size of the Yamaha TT-R230?
The 2027 Yamaha TT-R230 has a Capacity of 223.0 ccm (13.61 cubic inches).
What engine power does the Yamaha TT-R230 have?
The 2027 Yamaha TT-R230 has a Power of 19.6 HP (14.4 kW).
How many gears does the Yamaha TT-R230 have?
The 2027 Yamaha TT-R230 has a Gearbox of 6-speed.
What is the torque of the Yamaha TT-R230?
The 2027 Yamaha TT-R230 has a Torque of 18.6 Nm (1.9 kgf-m or 13.7 ft.lbs) @ 6000 RPM.
How much does the Yamaha TT-R230 weigh?
The 2027 Yamaha TT-R230 has a Dry weight of 107.0 kg (235.9 pounds).
