Supermotos
2023KTM 690 SMC R
47 fields on record
The 2023 KTM 690 SMC R is a lightweight supermoto built for riders seeking agile handling and versatile street performance. Its potent single-cylinder engine delivers 73.8 HP with impressive torque, enabling quick acceleration and nimble cornering. Known for exceptional maneuverability and traction control, it excels at combining road riding with occasional off-road capability.
- Capacity
- 693.0 ccm
- Engine
- Single, four-stroke
- Gearbox
- 6-speed
- Dry weight
- 147.0 kg
- Seat height
- 892 mm
- Power
- 73.8 HP (53.8 kW)
How it rides
Editorial estimate from the spec sheet - not lab tested- Best for
- Built for aggressive cornering, supermoto-style street attack, and tight technical riding rather than long-distance travel.
- Built for
- A raw, punchy big-bore single with sharp handling, strong midrange torque, and an aggressive, minimalist supermoto personality.
- Not ideal for
- Not a good fit for riders seeking plush comfort, pillion capability, or relaxed long-haul touring.
Scores are derived from the spec sheet using the same model across every bike, so they compare like for like.
Will it fit you?
Worked out in your browser - nothing is sent to usRange and running costs
Worked out in your browser - nothing is sent to usBased on the maker's published fuel consumption and tank size. Real-world figures depend on how and where you ride, and the last litres of a tank are reserve. Prices shown greyed are examples - type your own.
Engine
- Capacity
- 693.0 ccm
- Power
- 73.8 HP (53.8 kW)
- CO2 Emissions
- 102 CO2 g/km
- EPA Certificate No.
- PKTXC0.69ESM-003
- EPA Est. Fuel Consumption
- 4.34 L/100km (54.2 US mpg)
- EPA CO Emissions
- 2.5 CO g/km
- Torque
- 73.5 Nm (7.5 kgf-m)
- Engine type
- Single, four-stroke
- Fuel consumption
- 4.10 litres/100 km (24.4 km/l)
- Power/weight ratio
- 0.5020 HP/kg (dry)
- Bore x stroke
- 105.0 x 80.0 mm
- Compression
- 12.7:1
- Cooling system
- Liquid
- Fuel system
- Injection
- Starting
- Electric
- Ignition
- Keihin EMS with RBW, twin ignition
- Aspiration
- Naturally aspirated
- Valves per cylinder
- 4
- Lubrication system
- Forced oil lubrication with 2 oil pumps
Transmission
- Gearbox
- 6-speed
- Transmission type
- Manual
- Final drive
- Chain
- Clutch
- Slipper clutch, hydraulically actuated
Dimensions & weight
- Wheelbase
- 1480 mm
- Seat height
- 892 mm
- Dry weight
- 147.0 kg
- Wet weight
- 153.5 kg
- Fuel capacity
- 13.50 litres
- Ground clearance
- 237 mm
Chassis & suspension
- Frame
- Chromium-Molybdenum steel trellis frame, powder coated
- Front suspension
- WP APEX 48
- Rear suspension
- WP APEX with Pro-Lever linkage
- Front wheel travel
- 215 mm
- Rear wheel travel
- 240 mm
- Rake (fork angle)
- 26.4°
- Trail
- 110 mm
Brakes & wheels
- Front brakes
- Single disc. Bosch 9M+ ABS. Floating disc. Four-piston calipers. Radially mounted.
- Front brakes diameter
- 320 mm
- Rear brakes
- Single disc. Bosch 9M+ ABS. Floating disc. Single-piston caliper.
- Rear brakes diameter
- 240 mm
- ABS
- Yes
- Front tyre
- 120/70-17
- Rear tyre
- 160/60-ZR17
Other
- Color options
- Orange/blue/white
- Comments
- Ride modes. Switchable traction control.
- Fuel Tank Material
- Plastic
Compiled from manufacturer documentation and user contributions, corrected on an ongoing basis. Spotted something wrong? Tell us.
What changed, year to year
Differences highlighted| Specification | 2012 | 2016 | 2020 | 2023 | 2027 |
|---|---|---|---|---|---|
| Capacity | 690 cc | 690 cc | 693 cc | 693 cc | 693 cc |
| Dry weight | 142 kg | 141 kg | 147 kg | 147 kg | 152 kg |
| Seat height | 890 mm | 890 mm | 890 mm | 892 mm | 899 mm |
| Fuel capacity | 12 L | 12 L | 13.5 L | 13.5 L | 13.3 L |
Illustrative - generated automatically by diffing the year records already on file, not a manufacturer-published changelog.
Rider Reviews
Common questions
What is the engine size of the KTM 690 SMC R?
The 2023 KTM 690 SMC R has a Capacity of 693.0 ccm (42.29 cubic inches).
What engine power does the KTM 690 SMC R have?
The 2023 KTM 690 SMC R has a Power of 73.8 HP (53.8 kW).
How many gears does the KTM 690 SMC R have?
The 2023 KTM 690 SMC R has a Gearbox of 6-speed.
What is the torque of the KTM 690 SMC R?
The 2023 KTM 690 SMC R has a Torque of 73.5 Nm (7.5 kgf-m or 54.2 ft.lbs).
How much does the KTM 690 SMC R weigh?
The 2023 KTM 690 SMC R has a Dry weight of 147.0 kg (324.1 pounds).
Shop this bike
Affiliate linksWe may earn a commission from qualifying eBay or Amazon purchases made through these links. As an Amazon Associate I earn from qualifying purchases.
Similar bikes
Same category, weighted similarity

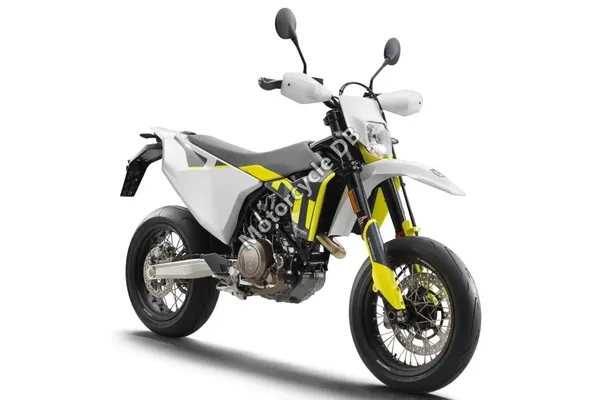

2023 Husqvarna 701 Supermoto
693 cc · 147 kg · 890 mm
2022 Husqvarna 701 Supermoto
693 cc · 147 kg · 890 mm

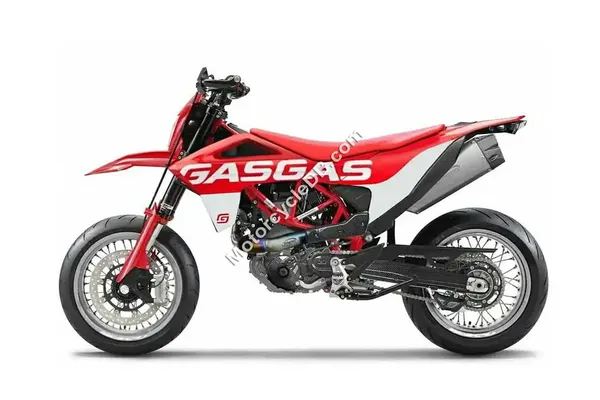

2023 GAS GAS SM 700 R
693 cc · 898 mm
2025 Ducati Hypermotard 698 Mono
659 cc · 163 kg · 904 mm
2026 Ducati Hypermotard 698 Mono
659 cc · 163 kg · 904 mm
2019 Suzuki DR650SE
644 cc · 147 kg · 885 mm
The 2023 KTM 690 SMC R is a powerful and versatile supermoto bike that delivers an exhilarating riding experience. With its 690cc single-cylinder engine, the SMC R offers impressive performance both on and off the road. The bike's lightweight and agile design make it easy to handle, while its advanced suspension and braking systems provide excellent control and responsiveness. Whether you're tearing up the track or navigating urban streets, the KTM 690 SMC R offers a thrilling and adrenaline-pumping ride.
In addition to its performance capabilities, the 2023 KTM 690 SMC R features a sleek and aggressive design that is sure to turn heads. The bike's modern styling, along with its cutting-edge technology and features, make it a standout choice for riders who are looking for a high-performance supermoto with a bold and eye-catching appearance. Overall, the KTM 690 SMC R is a top-notch option for riders who want a bike that delivers on both style and substance, making it a versatile and exciting choice for any adventure.
